 The Ryder Racing Stage 1 short block “The Daily” is perfect for the lightly modified car used as a daily. As everyone has seen the Subaru engine is prone for piston ring land failure and bearing failure, this can be as a result of oil starvation, excessive blow by or poor factory clearances.“The Daily” utilises your OEM STI Short block (EJ257) case halves (subject to condition), your rods are removed and crack tested, shot peened and fitted with ARP2000 bolts. Pistons are upgraded to Manley Platinum forged items much stronger than the factory items. The case bores are machined to 99.75mm to ensure correct fitment of the Manley pistons. The block is measured, balance and assembled using a new salt bathed Nitride Treated 2.5L STI crankshaft which is matched to King main and rod bearings. Clearances are double checked and the cases are bolted with new OEM case bolts and Threebond 1215 as per Subaru standards.
The Daily includes -

• Case Halves – honed to 99.75mm Stock Bore otherwise 100mm OS.

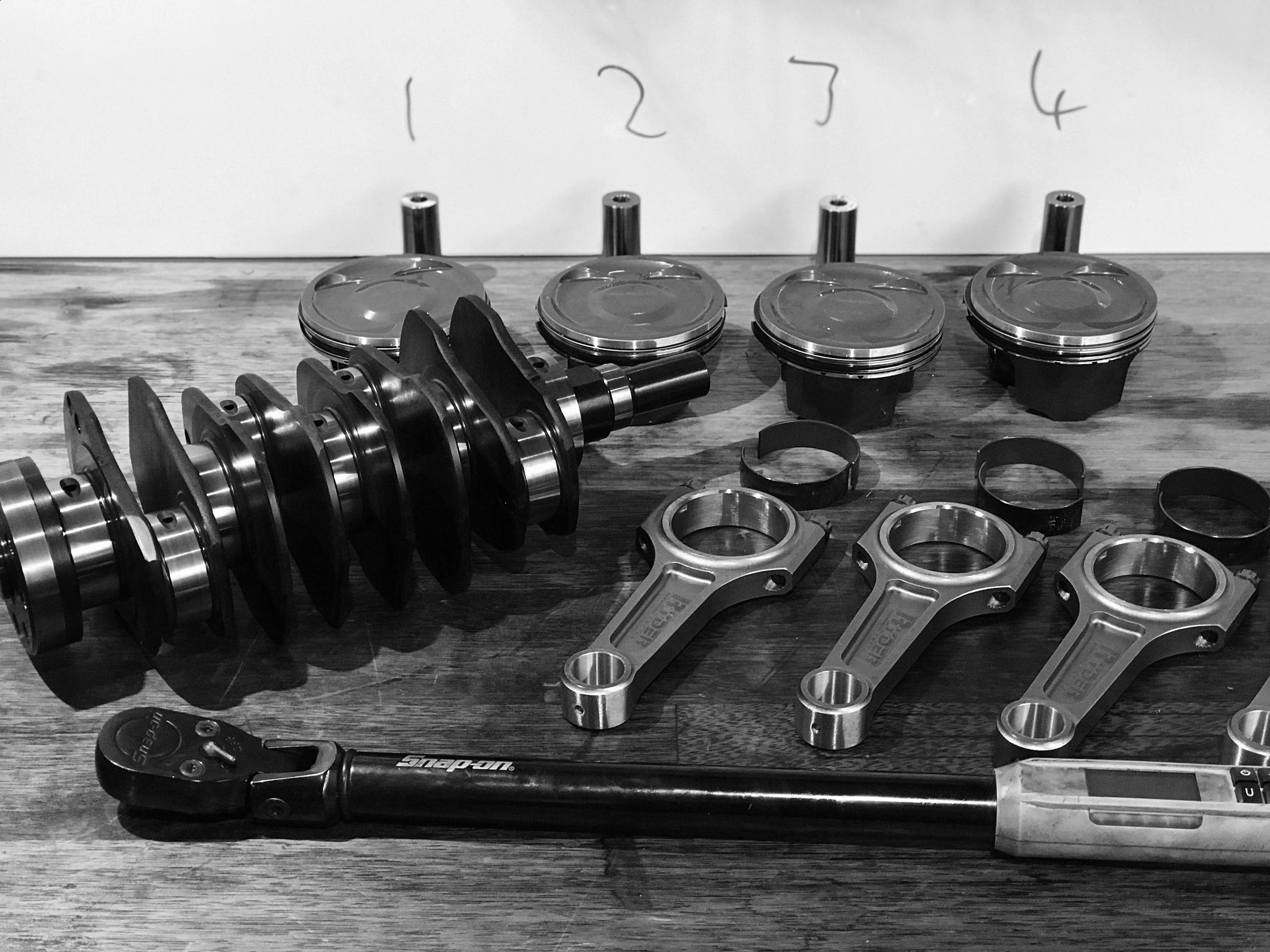

• Pistons – Manley Platinum Light weight series (round wire locks, Moly Skirt Coating and Chrome Moly Offset Wrist Pin)
• Connecting Rods - OEM STI rods, shot peened fitted with ARP200 rod bolts
• Rod / Main Bearings - King Bearings
• Crankshaft – New standard Subaru Nitride Treated Salt Bathed 2017+ STI Crankshaft
• Main Case Bolts and sealing - Standard FHI Subaru case bolts, Threebond 1215 sealant.

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard 1.1mm thickness head gasket. Subject to machining Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard thickness 1.1mm head gasket. Subject to machining
From $5600

Product # SB-EJ25-S1
“The Daily” has a potential power output 300kw, subject to supporting modifications.

 The Ryder Racing Stage 2 Forged Short Block “The Streeter” is designed for modified EJ25 and EJ257 Subaru engines that need slightly more solid internals. The Ryder Racing Streeter is the Stage 1 but with the addition of the Manley H-Beam forged connecting rods. The upgraded Manley rods enable higher engine loads produced by additional bolt on mods.
“The Sreeter” utilises your OEM STI Short block (EJ257) case halves (subject to condition), upgraded Manley H-Beam rods are fitted with ARP2000 bolts. Pistons are upgraded to Manley forged items, both are much stronger than the factory items. The case bores are machined to 99.75mm to ensure correct fitment of the Manley pistons. The block is measured, balance and assembled using a new Salt Bathed Nitride Treated 2.5L STI crankshaft which is matched to King main and rod bearings. Clearances are double checked and the cases are bolted with new OEM case bolts and Threebond 1215 as per Subaru standards.
The Streeter includes -

• Case Halves – honed to 99.5mm Stock Bore otherwise 99.75mm OS.
• Pistons – Manley Platinum Light weight series (round wire locks, Moly Skirt Coating and Chrome Moly Offset Wrist Pin)
• Connecting Rods – Manley H-Beam fitted with ARP200 rod bolts
• Rod / Main Bearings - King Race Bearings
• Crankshaft – New standard Subaru Nitride Treated Salt Bathed STI Crankshaft
• Main Case Bolts and sealing - Standard FHI Subaru case bolts, Threebond 1215 sealant.

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard 1.1mm thickness head gasket. Subject to machining  Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard thickness 1.1mm head gasket. Subject to machining
From $6120

Product # EJ25-SB-S2
“The Streeter” has a potential power output 400kw, subject to supporting modifications.

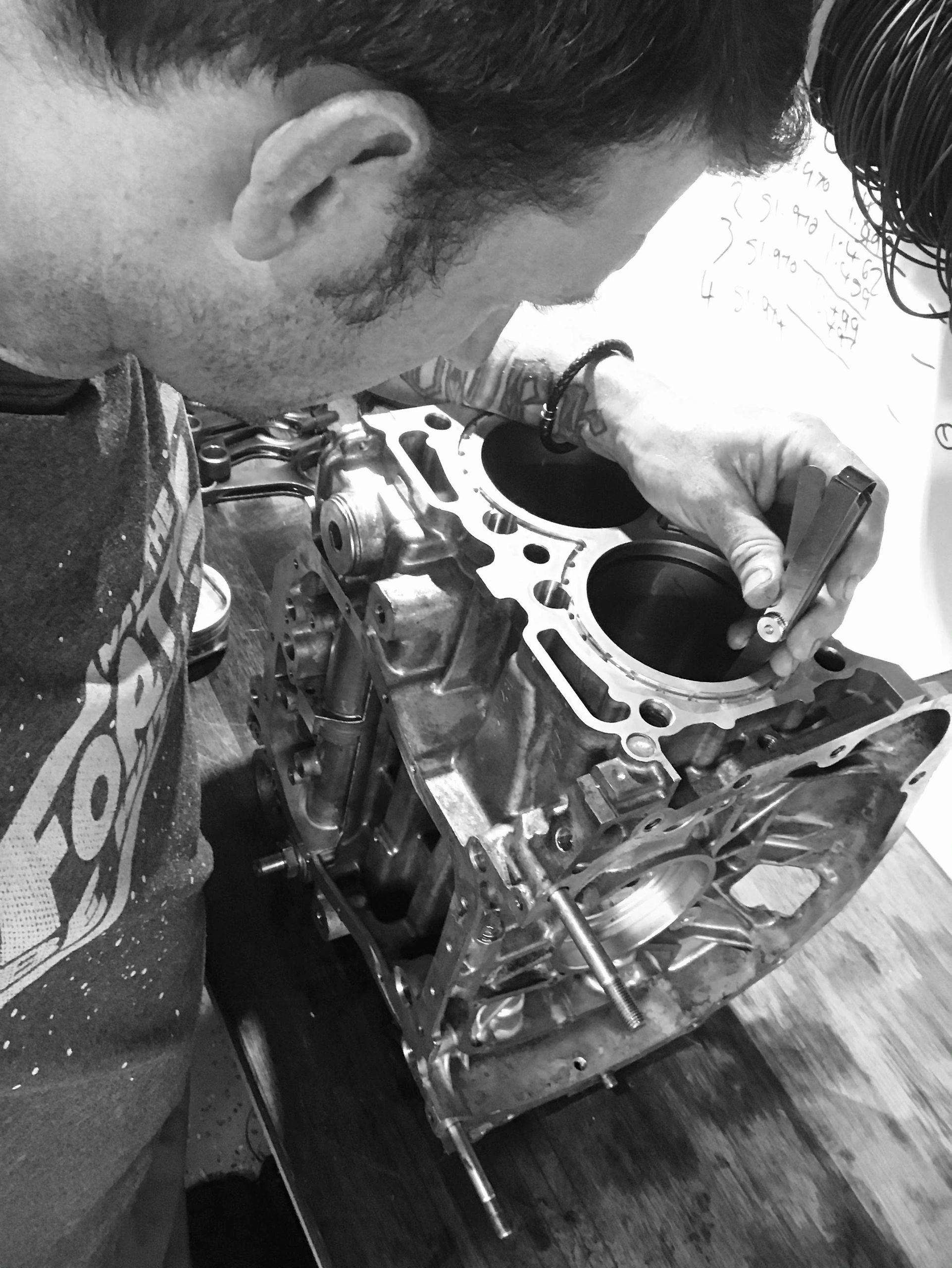

 The Ryder Racing Stage 3 Short Block “The Tuner” starts with machining your EJ255 or EJ257 case halves ready for close deck inserts. This creates the close deck block similar to the old and rare RS Turbo blocks. Small passages are drilled allowing coolant to flow to the deck surface while maintaining a solid deck. Our closed deck design has a one off doweling technique like no other to ensure no warping, sinking or floating.
The deck surfaces are machined to a perfect flat ready for your heads, next the bores are honed to 99.75mm for Manley Platinum Light Weight Pistons which have a Moly skirting and Chrome Moly wrist pins. The modified case halves are assembled using a new Subaru 2.5L Salt Bathed Nitride Treated STI crankshaft that is matched to King race main bearings. Manly H-Beam connecting rods and ARP2000 rod bolts are utilized with King race rod bearings. The case halves are sealed with new OEM main/case bolts and Threebond 1215 sealant.  The Tuner includes -

• Case Halves - Closed Decked using your Subaru OEM case halves EJ25 or EJ257, bored and honed to 99.75mm.
• Pistons – Manley Platinum Light weight series (round wire locks, Moly Skirt Coating and Chrome Moly Offset Wrist      Pin)
• Connecting Rods - Manley Turbo Tuff H-Beam / ARP2000 Rod Bolts.
• Rod / Main Bearings - King PMAX Cote Bearings
• Crankshaft – New standard Subaru Nitride Treated Salt Bathed STI Crankshaft
• Main Case Bolts and sealing - Standard FHI Subaru case bolts, Threebond 1215 sealant.

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard 1.1mm thickness head gasket. Subject to machining  Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard thickness 1.1mm head gasket. Subject to machining
From $7960

Product # EJ25-SB-S3
“The Tuner” has a potential power output 500kw, subject to supporting modifications and tuning.

The Ryder Racing Stage 4 Short Block “The Racer” starts with machining your EJ255 or EJ257 case halves ready for close deck inserts. This creates the close deck block similar to the old and rare RS Turbo blocks. Small passages are drilled allowing coolant to flow to the deck surface while maintaining a solid deck.
The deck surfaces are machined to a perfect flat ready for your heads, next the bores are honed to 99.75mm for Manley Turbo Tuff Pistons which have Moly skirting and Chrome Moly wrist pins. The case is then prepped for Ryder Racing 718 Series™ main dowels. The Ryder Racing 718 Series main dowel pins prevent the block from shifting and warping under high boost applications. Once they’re machined the pins are placed into these holes ready for assembly.
The modified case halves are assembled using a new Subaru 2.5L Salt Bathed Nitride Treated STI crankshaft that is matched to King main bearings. X-Beam connecting rods and ARP CA625+ rods bolts are utilized with King race rod bearings. The case halves are sealed with new OEM main/case bolts and Threebond 1215 sealant.  Ryder Racing “The Racer” includes -

• Case Halves - Converted to Closed Deck using your case halves, bored and honed to 99.75mm. (Exchange basis)
• Main Webbing Dowel Pinning - Machine the three main webbings for Ryder Racing 718 Series dowel pins.
• Pistons – Manley Turbo Tuff 2618 Forged Pistons, H13 Wrist Pins, Clips, (Chrome Moly Skirt Coating and Offset Wrist Pins)
• Connecting Rods –  X-Beam 4340 with ARP 625+ Rod Bolts.
• Rod / Main Bearings - King Race bearings.
• Crankshaft - New Salt Bathed Subaru Nitride Treated STI Crankshaft.
• Case / Main Bolts – Standard FHI Subaru case bolts.

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard 1.1mm thickness head gasket. Subject to machining  Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard thickness 1.1mm head gasket. Subject to machining
From $9889

Product # EJ25-SB-S4
“The Racer” has a potential power output 550kw, subject to supporting modifications and tuning.

The Ryder Racing Stage 5 Short Block “The Extremist” starts with machining your EJ255 or EJ257 case halves ready for close deck inserts. This creates the close deck block similar to the old and rare RS Turbo blocks. Small passages are drilled allowing coolant to flow to the deck surface while maintaining a solid deck. These plates are fitted using a sold lid system to prevent any warping when they're being pressed into the case half. The plates also utelise a unique doweling system to locate and seat then correctly.

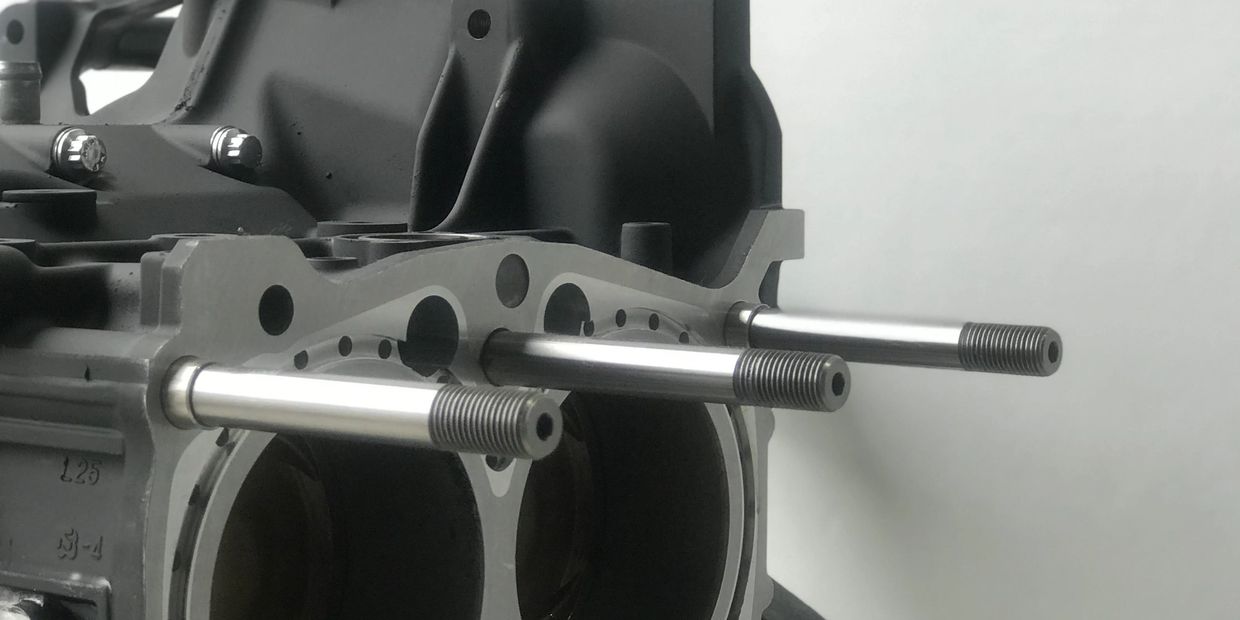

Case halves are machined to accept Ryder Racing 718 Series Head Stud Dowels, further machining and tapping is completed to accept Ryder Racing true 14mm head studs 380 nm proven. The additional thicker material (> 30%) head studs allow for heaver clamping of the heads preventing head gasket failures under any boost load. (Head studs Supplied with the block not fitted to minimise any damage during transportation.
The deck surfaces are machined to a perfect flat ready for your heads, next the bores are honed to 99.75mm for Manley Turbo Tuff Pistons which have Moly skirting and Chrome Moly wrist pins. The case is then prepped for Ryder Racing 718 Series™ main dowels. The Ryder Racing main dowel pins prevent the block have from shifting and warping under high boost applications. Once they’re machined the pins are pressed into these holes ready for assembly.
The modified case halves are assembled using a new Subaru 2.5L Salt Bathed Nitride Treated STI crankshaft that is matched to King race main bearings. X-Beam connecting rods and ARP CA625+ rods bolts are utilized with King race rod bearings. The case halves are sealed with ARP case bolts and Threebond 1215 sealant.  Ryder Racing “The Extremist” includes -

• Case Halves - Converted to Closed Deck using your case halves, bored and honed to 99.75mm. (Exchange basis)
• Main Web Dowel Pinning - Machining the three main webbings for Ryder Racing 718 Series inconel dowel pins.
• Pistons – Tuff 2618 Forged Pistons, H13 Wrist Pins, Clips, (Chrome Moly Skirt Coating and Offset Wrist Pins)
• Connecting Rods – X-Beam 4340 with ARP CA625+ Rod Bolts.
• Rod / Main Bearings - King Race tri metal bearings.
• Crankshaft - New Salt Bathed Subaru Nitride Treated STI Crankshaft.
• Case / Main Bolts – ARP Case bolts
• Head Studs - Ryder Racing 718 Series true 14mm head studs and dowels.
• Line honed for exact bearing clearances.

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard Subaru or IAH Cooper Fire ring gaskets 1.1mm thickness head gasket. Subject to machining  Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard Subaru or Cooper Fire 1.1mm head gaskets. Subject to machining
From $

Product # EJ25-SB-S5
“The Extremist” has a potential power output 600kw, subject to supporting modifications and tuning.

Ryder Racing has been working in the shadows for the past 2 years, after numerous calls to develop our own close deck program we were apprehensive about the idea due to the failures of other reputable designs that are currently on the market. After a short discussion with Dave P (OMD Ryder Racing's official engineer) the solution was obvious, a completely new design! We combined everything which was shared with us and combined it with our engineering and innovation to come up with all the solutions for the failed closed deck programs out there.

Where others short cut we took it to the next level, using thinner plates to save machine time and plate cost was unacceptable, we start with a 30mm plate so we can press a one piece insert into the case halves, this stopped distortion and incorrect fitment issues. Where other companies haven't seated the insert correctly which either lifted or sunk we have a unique doweling system which works along side a shelving system to prevent "floating and warping". We are the first in the world to bring such innovation to the closed deck program.

We have incorporated a coolant passage system around the entire circumference of the bore which allows any gasket type or head design making them a perfect system for hybrid engines. We are now offering drilling and tapping for OUR 14mm head studs as well as CNC drilling for our 718 Series main web pinning which accommodates our 718 Inconel Dowles

Our CD program is offered on an Exchange basis unless arranged with management. Our Closed Deck Program is exclusive to Ryder Racing Pty Ltd, Images are subject to Copyright protection 2023. 718 Series is a Tradmark of Ryder Racing Pty Ltd 2018, its use and content is prohibited unless consent granted under dealer contract.

The Ryder Racing forged Short Block “The Hybrid” is designed for those running an earlier model but not just limited to WRX GC, GDA and GDB, Liberty’s and Foresters with the EJ20. If you’re wanting to go bigger displacement we now have the perfect build for you! Using great ingenuity, we have the solution ready to bolt your standard 2.0L heads straight on.
The Ryder Racing long engine “The Hybrid” is designed to use your factory heads and manifolds to enable you to bolt the engine straight in without any modification. “The Hybrid” uses brand new OEM STI case halves (EJ257). Manley H beam rods are used to maintain the correct stroke and strength. Pistons are upgraded to Manley platinum forged items much stronger than the factory items. The block is measured, balance and assembled using a new  salt bathed Nitride Treated 2.5L STI crankshaft which is matched to King main and rod bearings. Clearances are double checked and the cases are bolted with new OEM case bolts and Threebond 1215 as per Subaru standards.
Your heads are surfaced machined with the valve seats getting a once over to restore better than factory clearances, valve stem seals are replaced due to the aged items fitted. OEM head gaskets are fitted with the aid on ARP2000 head studs. The long motor has all timing gear fitted ready to be fitted to you Subaru.
Ryder Racing “The Hybrid” includes -

• Case Halves – New STI EJ257 case halves
• Pistons – Manley Platinum Light weight series (round wire locks, Moly Skirt Coating and Chrome Moly Offset Wrist Pin)
• Connecting Rods – Manley H Beam Connecting Rods
• Rod / Main Bearings - King Bearings
• Crankshaft – New standard Subaru Nitride Treated Salt Bathed STI Crankshaft
• Main Case Bolts and sealing - Standard FHI Subaru case bolts, Threebond 1215 sealant.
• Head Studs - ARP 2000 heads studs
• Timing Belt Kit – Genuine Timing belt kit including tensioner
• Engine Gaskets – Ryder Racing Engine Gasket kit, RCM 1.1 MLS head gaskets.
• Miscellaneous – Water pump, OEM thermostat
• Heads -  Complete head service, seat regrind, valve stem seals, crack test and vacuum testing, valve clearances reset

Compression Ratio: 8.5:1 on D Cylinder Heads (EJ255) with standard 1.1mm thickness head gasket. Subject to machining  Compression Ratio: 8.2:1 on B, V and W (EJ257) Heads with standard thickness 1.1mm head gasket. Subject to machining
RRP $10200
Additional items for considerationRyder Racing timing belt guide11/12mm Oil PumpKiller B Oil Pickup / windage tray / oil pan (sump)Product # SB-EJ20-25HYB
“The Hybrid” has a potential power output 400kw, subject to supporting modifications.

This is to crazy to list, please contact us for further details, this package is still under development untelising the following componets

Forged 83mm Stroker Crank
100-102mm pistons
Ryder Racing Closed Deck Program
Main bearing pinning
Darton Sleeves
